Within Viewport: JavaScript and jQuery Plugin

Within Viewport indicates whether an element is entirely within the viewport. It also allows you to specify your site’s effective viewport (eg, to account for fixed header and navigation bars) and provides a few handy shortcut notations.

It’s quite simply to use:

var elem = document.getElementById("myElem");

// Returns true if it's completely visible

// Same as above, but using the jQuery plugin

// Run some function on all visible divs

Live Demo • Source Code at Github

There are a few “in view” scripts out there — namely, Mika Tuupola’s Viewport Selectors for jQuery provides some convenient selectors that can be tested against elements, and Remy Sharp’s Element ‘in view’ Event Plugin fires events when elements pass in and out of the viewport.

While useful, these utilities only detect whether elements are partially in view. The aim of Within Viewport is to determine what content the user can see and interact with.

Use Cases

A lot can be learned from monitoring the viewport, especially on a site with content that spans well outside of the user’s view. I will discuss how I use Within Viewport in much more detail in my next post. But here’s a quick overview of what you can do.

  • Dynamic content loading

    A site’s performance can be increased effectively by loading data on demand, for example when the user scrolls near the bottom of the page. But perhaps the content on screen is more pertinent than the scroll position. For example, you may want to load the entire structure of your site during the initial page load, but then populate that structure with heavier media as it nears the user’s field of view.

  • Responding to user behavior

    You may also want to tailor when that content is loaded based on how rapidly the user moves about the page. If you are relying on a third party API for content, you may want to start the process sooner than you would begin requested content from your own server.

    For example, the script below would find and load items with local content that is merely just beyond the viewport, but also load third-party content that appears much further down the page.

    // Image placeholders at most 100px below the fold
    // Image placeholders as far as 500px below the fold
  • Making appropriate measurements

    If you want to know what your user has seen, for example to remember their reading position in a feed, you can only consider ones that are fully in view. You also need to take into account the actual viewport, avoiding things like fixed header bars that cover parts of the page.

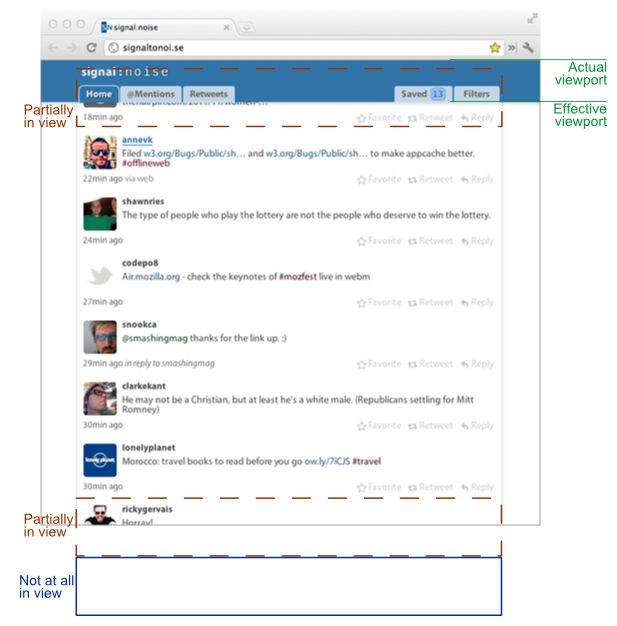

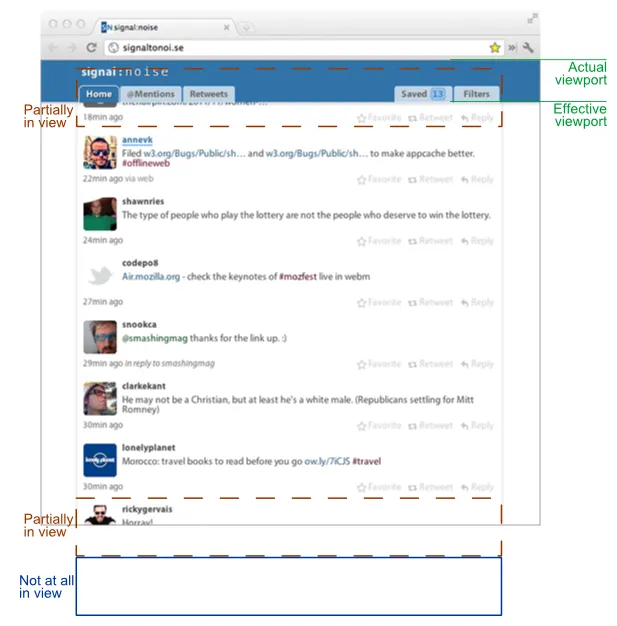

    Diagram showing elements of a Twitter feed being in and out of view

    Larger version
  • Live updates

    If you implement keyboard navigation between items, similar to Google Reader, you need to make sure a newly-selected item is actually visible.

  • Tracking how your app is used

    You can tap into Google Analytics’ Event Tracking to find out how often items enter your visitor’s field of view.

I built Within Viewport to accomodate those needs, but I made it generic enough that any site or web app could benefit from it. There are configurable defaults and several shorthand notations described with examples in the documentation.

No jQuery? No problem

I wanted to write a tool that was independent of jQuery so it could be dropped into any project. Of course jQuery does offer some useful mechanisms such as filtering and custom selectors, so I added an optional plugin to provide that functionality.

Live Demo Source Code at Github

  • Pingback: Within Viewport: JavaScript and jQuery Plugin » console.blog() | EtondeGroup Blog of Web Applications()

  • Noman


    This is a really great  piece of work by you.

    Can I ask for a very small modification ?

    How about if I want the plugin to fire on partially visible elements too ? Like in the demo, only the boxes that are completely visible are shown. How about the partially visible boxes also count as within the viewport.

    I will be using it in one of my projects and that is why I want it to work that way.

    Can you help ?

    Best regards,

    • http://patik.com/ Craig Patik

      There are already two great plugins that do what you are looking for: Mike Tuupola’s Viewport Selectors and Remy Sharp’s Element In View Event.

      I specifically wrote Within Viewport as a compliment to those plugins — I wanted to find only the elements that were entirely within the viewport.

  • speets

    This is great, however it doesnt seem to work if the elements I want this to work on are in a scrolling container. In this case I use iScroll as a big horizontal scroller, in which around 20 elements are sorted. When I scroll, and I call your script onScrollEnd, nothing happens. Anything I overlooked? I used the jQuery Appear plugin earlier, which had a fix for this issue patching to make it also work with Containers. Only problem is, your plugin says it does what I want it to do.

    Hope I made sense- is there a way to do this or a patch for this?

  • Pawel

     Very nice plugin. It’s easy to implement and the settings are comfortable.
    But I’ve problems with IE <= 8.0

    In the main library viewport.js you are checking the innerWidth and innerHeight attributes of window object (it's undefined in IE8) and it should be: window.innerHeight || document.documentElement.clientHeight
    and window.innerWidth|| document.documentElement.clientWidth

  • Alexey Shaposhnikov

    there is a bug. I’ve made a bit scroll to bottom and got this.

    Chrome Version 31.0.1650.57

    Mac OSX 10.7.5

  • César Gómez

    Very useful plugin, thank you Craig!
